Project :

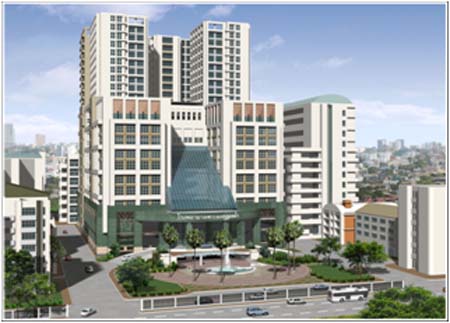

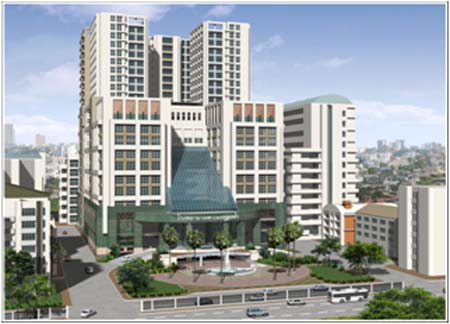

MULTI-PURPOSE MEDICAL BUILDING PRAMONGKUTKAO MILITARY HOSPITAL

Location :


Description :
Type of Building ; Military Hospital, 600 Beds,
22 Storeys, Usable Area 126,293 sq.m.
Electrical Power Substation ;
1.HV. Switchgear 630 A., 24 KV.
2.Transformer ; Dry Type Cast Resin
4x2,000 KVA.,2x1,600 KVA., ( AN/AF )
3.Diesel Generator ; 2x360 KW.
Air Conditioning System ; Water Cooled Centrifugal Chiller : 5x1,200 Tons, 2x600 Tons.
Average Water Consumption ; 600 sq.m./day.
Waste Treatment Plant ; Aeration Activated Sludge System.
Elevator System ; 12 Passenger Elevators.
